Mikron Switzerland AG - Capacity Expansion for Automation Systems
Mikron Automation reached its capacity limits in Boudry. As general planner, IE Technology planned and executed an extension and a new energy centre to sustainably secure assembly capacity for highly complex automation systems.
Capacity Expansion and New Energy Center
Project
Site restructuring including a feasibility study, planning, execution and commissioning of a new production facility.
Client
Mikron Switzerland AG
Key Data
Working Together for Project Success
Services provided by IE Group
Services provided by IE Group
- Flexibly usable production space thanks to an innovative structural concept
- Sustainably generated energy from the newly built energy centre
- Future-ready site concept with expansion options
- Maximum Efficiency in the Use of Available Space
- Construction delivered without interruption thanks to optimal construction and operations planning
- Reliable adherence to deadlines and cost targets
Challenges & Solutions
Zusammenführung der Produktion von zwei Standorten an einem Standort
Maximale Nutzungsflexibilität trotz begrenzter Platzverhältnisse
Deutliche Senkung des Energieverbrauchs dank neuer Energiezentrale
The Project in Detail
Mikron Switzerland AG is a leading provider of automation solutions for the pharmaceutical, medical, electrical and automotive industries. To make production — previously spread across two separate sites in Boudry — more efficient, the company decided to restructure the site and appointed IE Technology as General Planner.
Based on an IE Master Plan, the industrial construction specialists from Zurich developed a tailored restructuring concept, consolidated the entire production at the headquarters in Boudry and created a state-of-the-art factory complex. The new complex also integrates the development department, features a sustainable Energy concept And, above all, enabled a significant increase in efficiency.
The Challenge
Micron's production had previously been split between two sites in Boudry, several hundred metres apart. The resulting long internal transport routes significantly reduced productivity and led to high running costs. In addition, growing demand meant the existing setup was reaching its capacity limits. The goal was therefore to concentrate all production at a single location and make it more efficient at the same time.
Key Success Factors
By intelligently restructuring the headquarters in Boudry, IE Technology's experts succeeded in consolidating the entire production at one production site and noticeably improving both efficiency and energy consumption. To achieve this, the planners focused on optimising the building concepts: a new production building was integrated into the existing site, while the remaining existing buildings were repurposed.

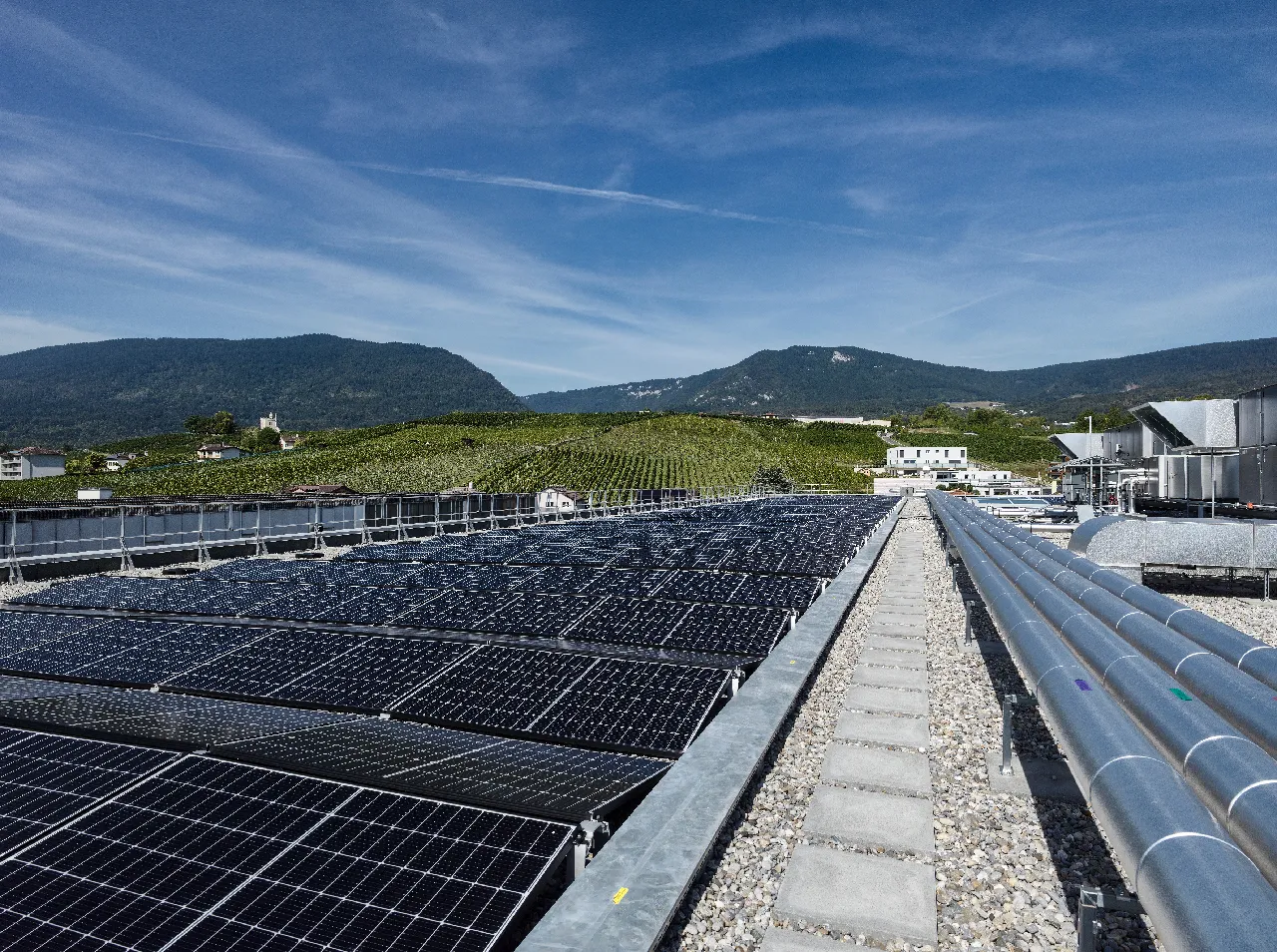

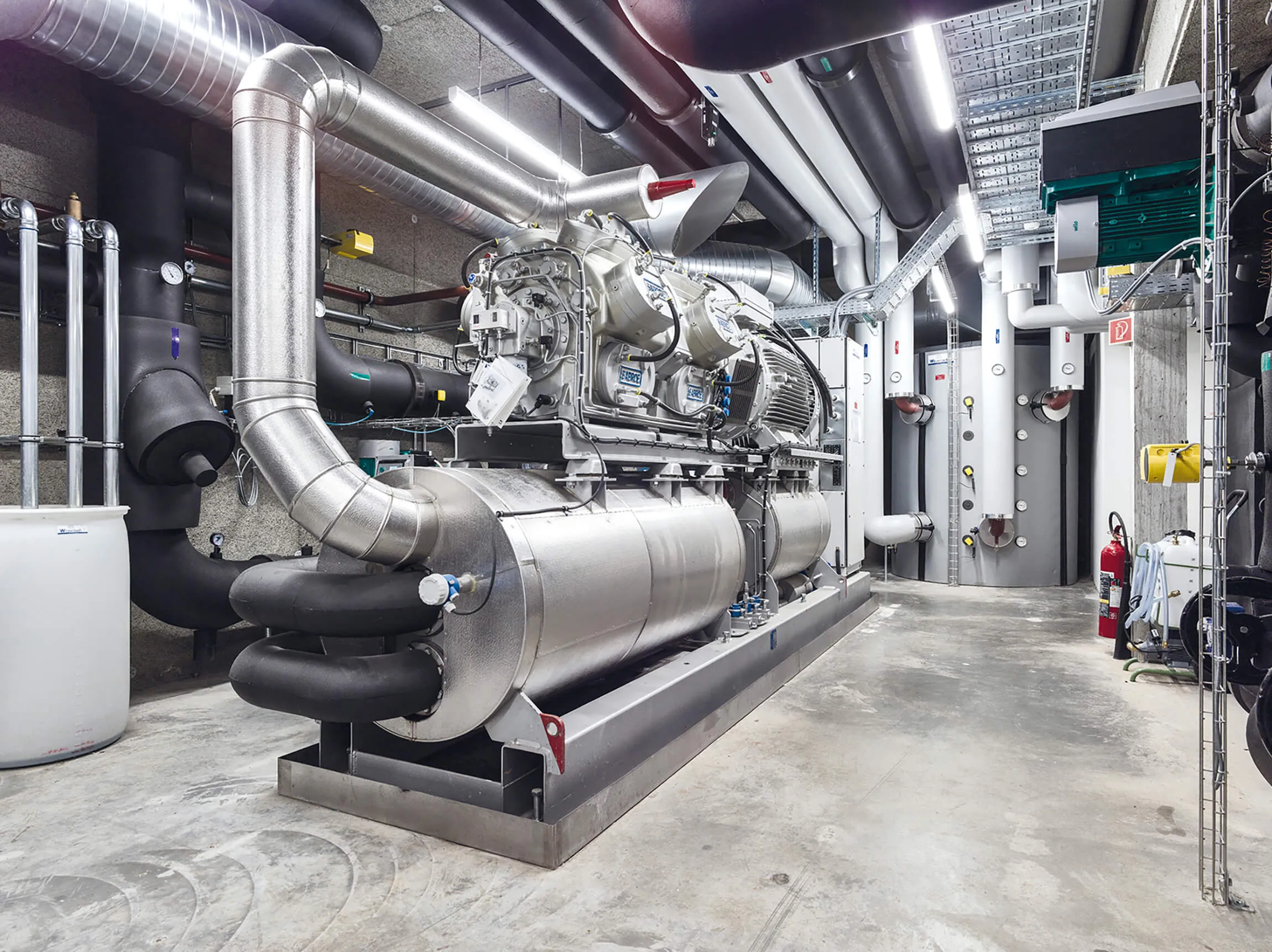

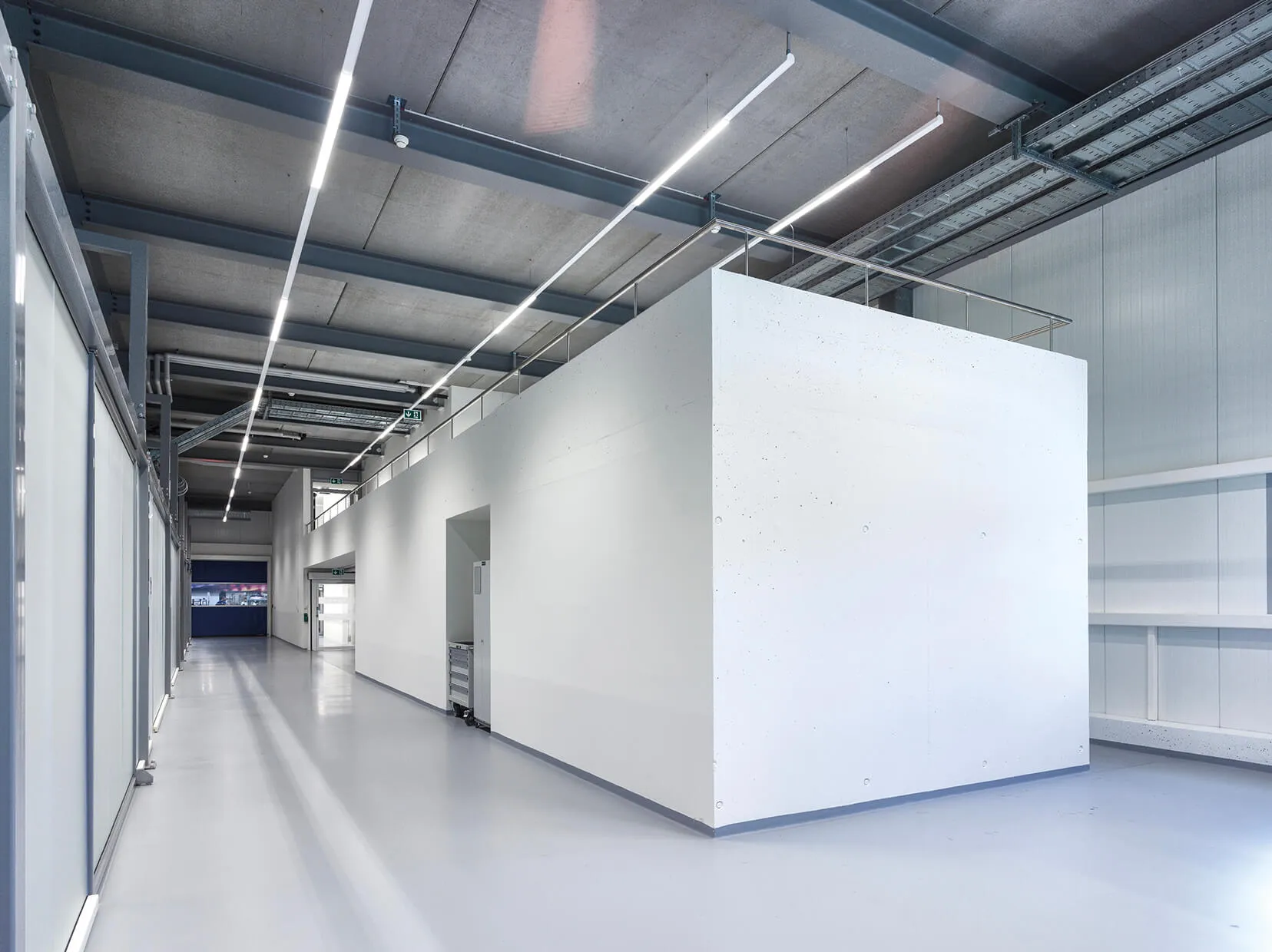

Despite the limited space available, production and the development department were accommodated in a single building. The New Production Hall Spans 3,600 m² with only seven load-bearing columns, providing maximum flexibility. The final decisive step towards greater efficiency was the new energy centre delivered by IE Technology, featuring high-tech heat pumps and a 1.300 m² photovoltaic system.
The energy generated here is consumed 100% directly at the site and, alongside the cost savings achieved, makes the new production facility a flagship for sustainability.
